How to Read a Fish Finder
Like a Pro

There is a distinct, agonizing frustration known only to anglers who spend hundreds of dollars on top-tier marine electronics, mount them to their console, power them up on the water, and realize they have absolutely no idea what they are looking at. To the untrained eye, a modern fish finder screen looks less like a map of fish and more like a chaotic cross between an 80s arcade game and a hospital heart monitor.

After logging thousands of hours on the water testing every major marine electronics platform on the market—from entry-level units like the Garmin Striker 4, budget-friendly high-contrast options like the Garmin Striker Vivid 5cv, and compact workhorses like the Humminbird Helix 5 G3 to mid-tier scanning powerhouses like the Garmin ECHOMAP UHD2 73sv, the fully networked Lowrance Elite FS 9, and its larger sibling, the Garmin ECHOMAP UHD2 94sv, all the way to tournament-grade processing powerhouses like the Humminbird XPLORE Series, as well as ultra-portable castable options like the budget-focused Venterior Portable Rechargeable Fish Finder—I am stripping away the marketing fluff. This is a comprehensive, universal masterclass on how to interpret sonar data across any brand so you can read your screen like a seasoned professional.

Deconstructing the Hardware: Display Units and Transducer Optics

Before diving into the software data, we must look at the hardware responsible for collecting and displaying this information. Every fish finder setup consists of two primary components: the head unit and the transducer.

Head Unit Displays: Resolutions and Sunlight Viewability

The head unit is the processing brain and visual output of your system. Modern marine displays utilize specialized high-bright, bonded LCD screens engineered to remain legible under direct, blinding sunlight.

When evaluating a display, resolution matters far more than screen size. A 7-inch screen with an 800 x 480 pixel array offers vastly superior target separation compared to a massive 10-inch screen running a lower pixel density. Higher resolution allows the processor to assign separate pixels to two closely grouped targets, showing you two distinct fish instead of one large, pixelated blob.

Transducer Construction and Mounting Dynamics

The transducer is the unsung hero of your boat. It houses piezoelectric crystals that physically expand and contract when hit with electrical currents, converting electrical energy into acoustic sound waves that blast through the water.

The positioning of this hardware dictates the quality of your screen data. If a transducer is mounted even half an inch too high, or at a slight backward angle, it introduces micro-bubbles across the face of the crystal. This creates immediate, unreadable noise on your screen the second your boat gains speed.

The Physics of Sound: Technical Performance Across Sonar Technologies

To unlock the full potential of your marine electronics, you must understand that modern fish finders utilize completely different styles of acoustic beams to paint a picture of the underwater world.

Traditional Dual-Beam and CHIRP Technology

For decades, standard fish finders relied on traditional sonar, which pulses a single, discrete frequency at a time (typically 50 kHz or 200 kHz). While effective, this old-school method is prone to noise and struggles to separate closely grouped targets.

Modern electronics have largely replaced this with CHIRP technology (Compressed High-Intensity Radiated Pulse). Instead of firing a single acoustic shot, a CHIRP system—like the one found on the Lowrance Hook Reveal 5x—continuously sweeps across a wide spectrum of frequencies, for example ranging from 150 kHz to 240 kHz. For a detailed head-to-head comparison of how these frequency sweeps operate, read our complete guide comparing CHIRP vs. Traditional Sonar.

Because it puts significantly more sound energy into the water column and processes multiple frequency returns simultaneously, the clarity skyrockets. With CHIRP, I can cleanly differentiate two panfish swimming less than two inches apart inside a dense brush pile, whereas an older, non-CHIRP unit would display them as a single, ambiguous mass.

High-Frequency Down Imaging vs. Side Imaging

When you want to see exactly what an underwater obstacle looks like, you switch away from traditional views and employ scanning sonar:

Down Imaging: Operating at ultra-high frequencies (typically 455 kHz to 1.2 MHz), this technology drops a beam shaped like a razor-thin fan directly beneath your hull. It discards abstract shapes in favor of near-photographic imagery. If you troll over a sunken bridge, down imaging maps individual wooden pylons, concrete blocks, and discarded tires with absolute precision.

Side Imaging: Utilizing two razor-thin fan beams pointed out to the left and right sides of your boat, this technology allows you to scan vast expanses of water (often up to 150 feet out in either direction) in a single pass. Portable units like the ReelSonar iBobber offer side-imaging-like capabilities in a compact, castable form factor. It is the ultimate tool for locating isolated rock piles, weed lines, or submerged standing timber away from your boat's direct path.

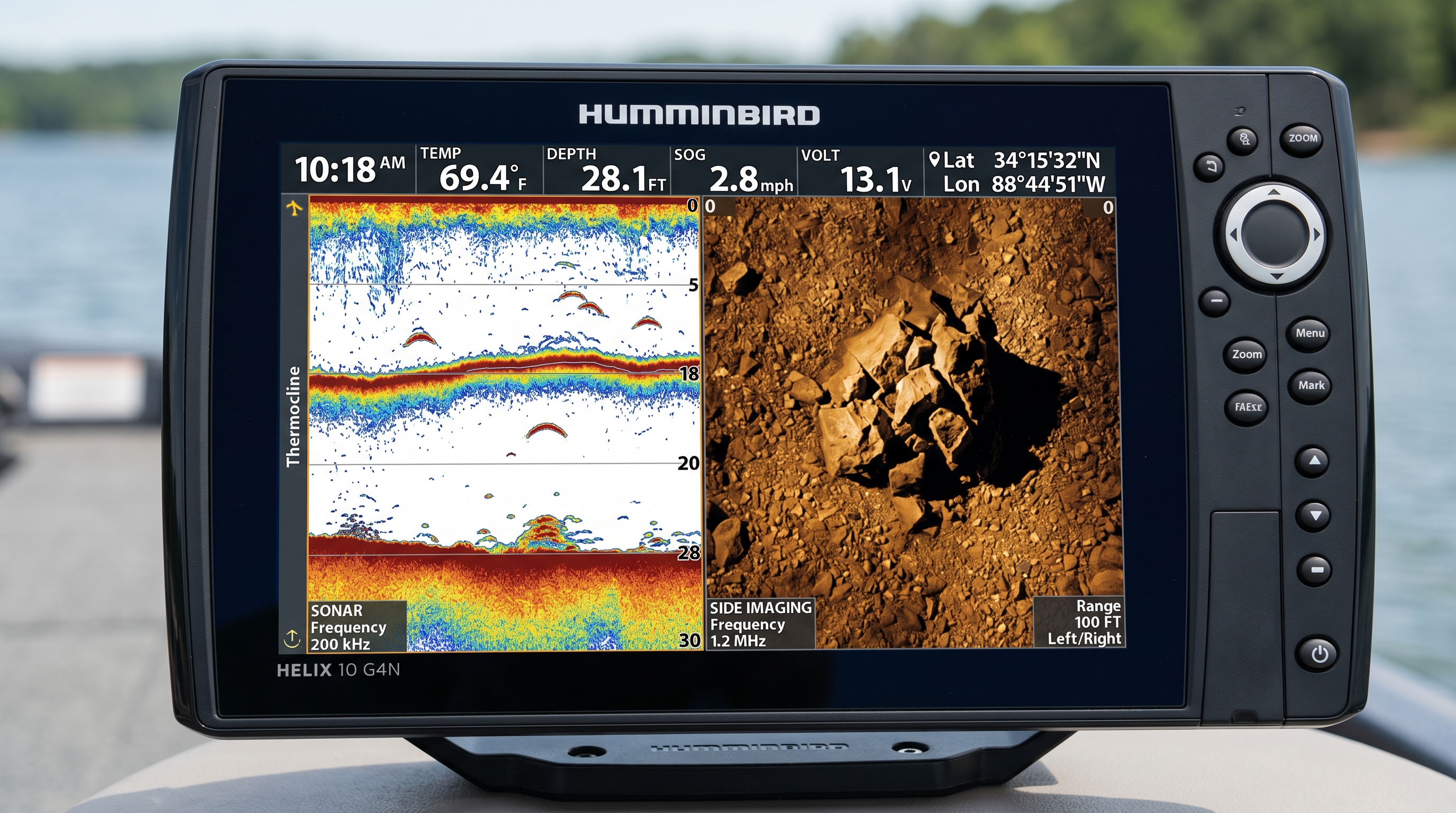

Side Imaging (left) and Down Imaging (right) working in tandem. Side Imaging scans a wide swath of the flats to locate isolated structure, while Down Imaging provides a near-photographic vertical slice to reveal exact pylon and timber layouts directly beneath the hull.

Frequency Selection: 50 kHz vs. 200 kHz vs. 800 kHz

Choosing the right transducer frequency is a constant trade-off between depth capability and structural detail. Lower frequencies (like 50 kHz or 83 kHz) feature a wide cone angle that spreads out broadly through the water. Low frequencies penetrate deep into the water column, making them essential for deep-water saltwater angling, though they sacrifice fine detail.

Conversely, high frequencies (200 kHz up to 1.2 MHz) have incredibly narrow cone angles. They suffer from rapid attenuation in deep water but provide breathtaking resolution in shallow to mid-depth scenarios.

The Anatomy of a Sonar Screen: Reading Data Like a Professional

To graduate from a casual observer to an expert angler, you must turn off the artificial "Fish ID" symbols in your unit's system menu immediately. Fish ID is a crude algorithm that guesses what a target is, routinely misidentifying floating leaves, air bubbles, and waterlogged branches as trophy gamefish. To find fish reliably, you must learn to read the raw acoustic data.

Why Fish Arches Form (And Why They Don't)

The iconic fish arches seen on traditional screens are entirely an artifact of geometry and motion. They are created as an object passes completely through your transducer's cone.

Understanding this progression explains the shape perfectly:

The Entry (Point A): As a fish first enters the outer edge of your expanding sonar cone, it is technically further away from the transducer crystal than it would be if standing directly underneath it. The machine measures this distance and plots a deeper depth mark on the far right edge of your screen.

The Apex (Point B): As the boat moves directly over the fish (or the fish swims directly under the boat), it reaches its absolute closest point to the transducer. The depth reading moves upward, creating the peak of the arch.

The Exit (Point C): As the fish slips out of the trailing edge of the acoustic cone, the distance increases once again, pulling the depth reading downward to complete the second leg of the arch.

Crucial Insight: You will only see a perfect arch if the fish moves completely through the center of your cone, or if your boat is actively moving over a stationary fish. If you are anchored or vertical jigging directly over a fish holding perfectly still inside your beam, it will not print an arch. Instead, it will draw a continuous, flat horizontal line across your screen.

Interpreting Color Density and Return Thickness

Never judge a fish's size by how long its arch appears on the screen. A long arch simply means the fish or the boat was moving incredibly slowly, keeping the target inside the sound beam for an extended period. Instead, train your eyes to evaluate two critical metrics: thickness and color intensity.

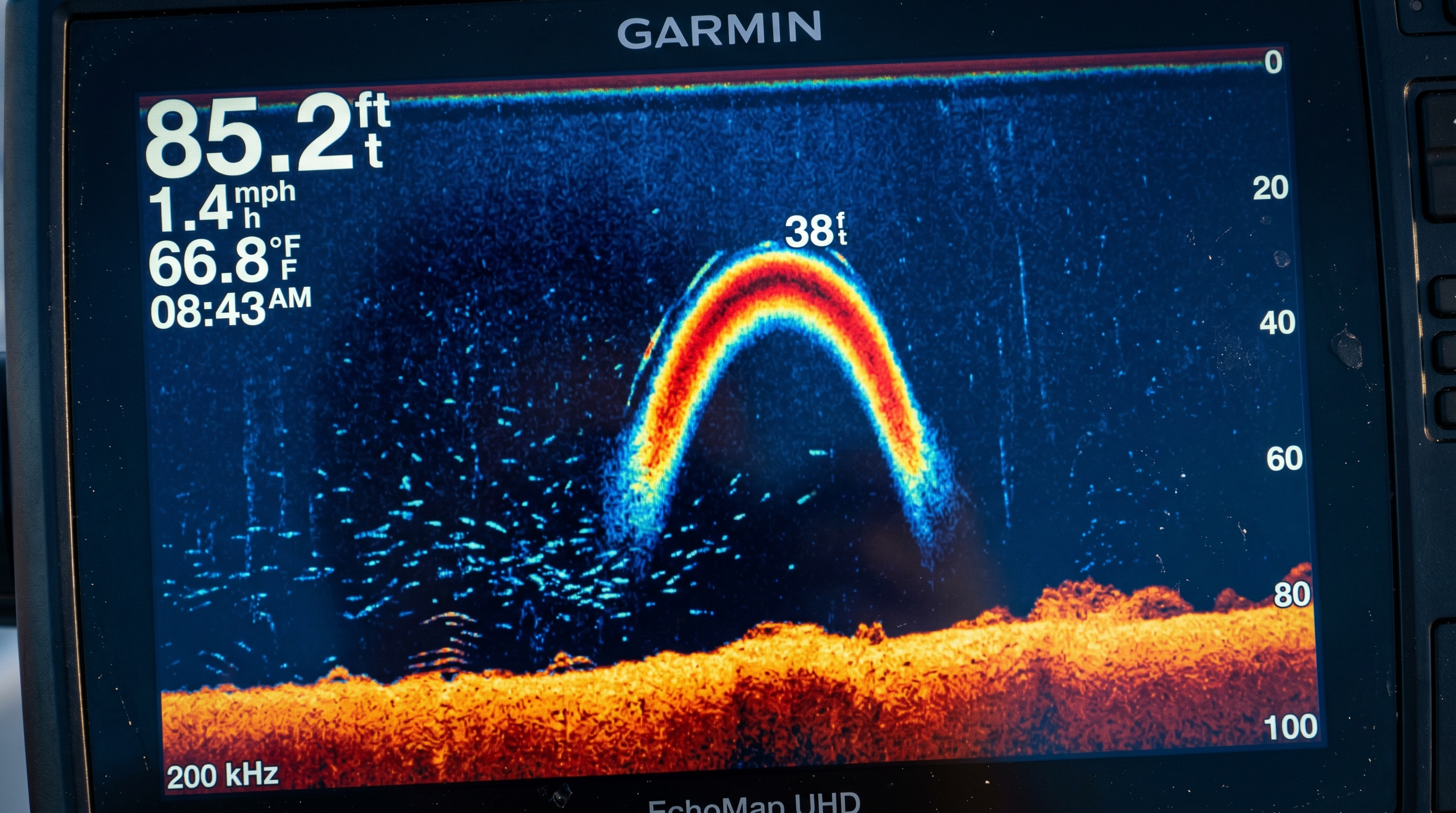

Classic CHIRP sonar display showing distinct, well-defined arches. The thick, prominent arches with intense red and yellow center bands indicate mature gamefish holding near the bottom, rather than small baitfish or tree branches.

The core of a large fish contains a dense skeletal structure and a significant, air-filled swim bladder. This air-to-water boundary creates a massive bounce-back of energy, resulting in a high sonar return strength.

On a standard multi-color display palette, this dense center registers as a thick, solid block of your primary "hot" color (typically bright yellow or vibrant red). A small baitfish, by contrast, returns a faint, thin line consisting entirely of "cool" exterior colors like blue or light green. If you spot a thick arch with a glaring yellow or red core, you are looking at a heavy predator fish.

Differentiating Baitfish Schools from Structural Cover

Distinguishing living fish from dead structure requires analyzing patterns and positioning on your screen:

Baitfish Schools: Individual forage fish are typically too small to return distinct arches. Instead, they register collectively as large, amorphous clouds suspended in the water column. They often look like wispy cotton balls or dense, irregular clusters. A tight, ball-shaped cloud indicates the baitfish are actively schooling hard because predators are actively hunting them. A loose, scattered cloud means they are unbothered.

Vegetation and Trees: Weeds, brush piles, and standing timber always root directly to the bottom line. They show up as vertical, jagged lines extending upward from the floor. Unlike living fish, they lack a dense, localized hot-colored core because plant matter does not bounce back sound waves with the same velocity as an air-filled swim bladder. When targeting fish clustered inside submerged wood, referencing a specialized approach like our brush pile fishing guide will help you choose snag-resistant presentations to fish it cleanly.

Locating the Thermocline and Undersea Hardness Transitions

During the summer months, bodies of water naturally stratify into distinct temperature layers. The barrier separating the warm, oxygen-rich top layer from the cold, dense bottom water is called the thermocline line. Because the water density changes drastically at this exact boundary, it reflects a small percentage of your sonar's sound waves. It appears as a faint, continuous horizontal band of scattered dots stretching across the screen at a specific depth line. Since baitfish and predators heavily congregate right along this temperature shelf, finding it instantly narrows down your productive fishing zone.

Evaluating bottom hardness is equally vital. A soft, muddy bottom absorbs a large portion of the acoustic pulse, resulting in a thin, faint bottom line on your display. A hard bottom consisting of solid rock, packed clay, or gravel reflects the signal violently. This produces a very thick, intensely colored bottom line, often followed by a "second return" echo line directly below the main bottom layout.

Dialing in Your Settings: Dial-In Ease of Use and Optimization

Most anglers leave their fish finders on "Auto" mode forever, which forces the unit to rely on a generalized algorithm. To unlock pro-level performance, you must learn to manually adjust your configuration on the fly.

Finding Your Ideal Setup: Target Persona Analysis
