Humminbird XPLORE Series Fish Finder Review (2026): Unfiltered Clarity for the Serious Tournament Angler

Humminbird XPLORE Series — First Impressions & Build Quality

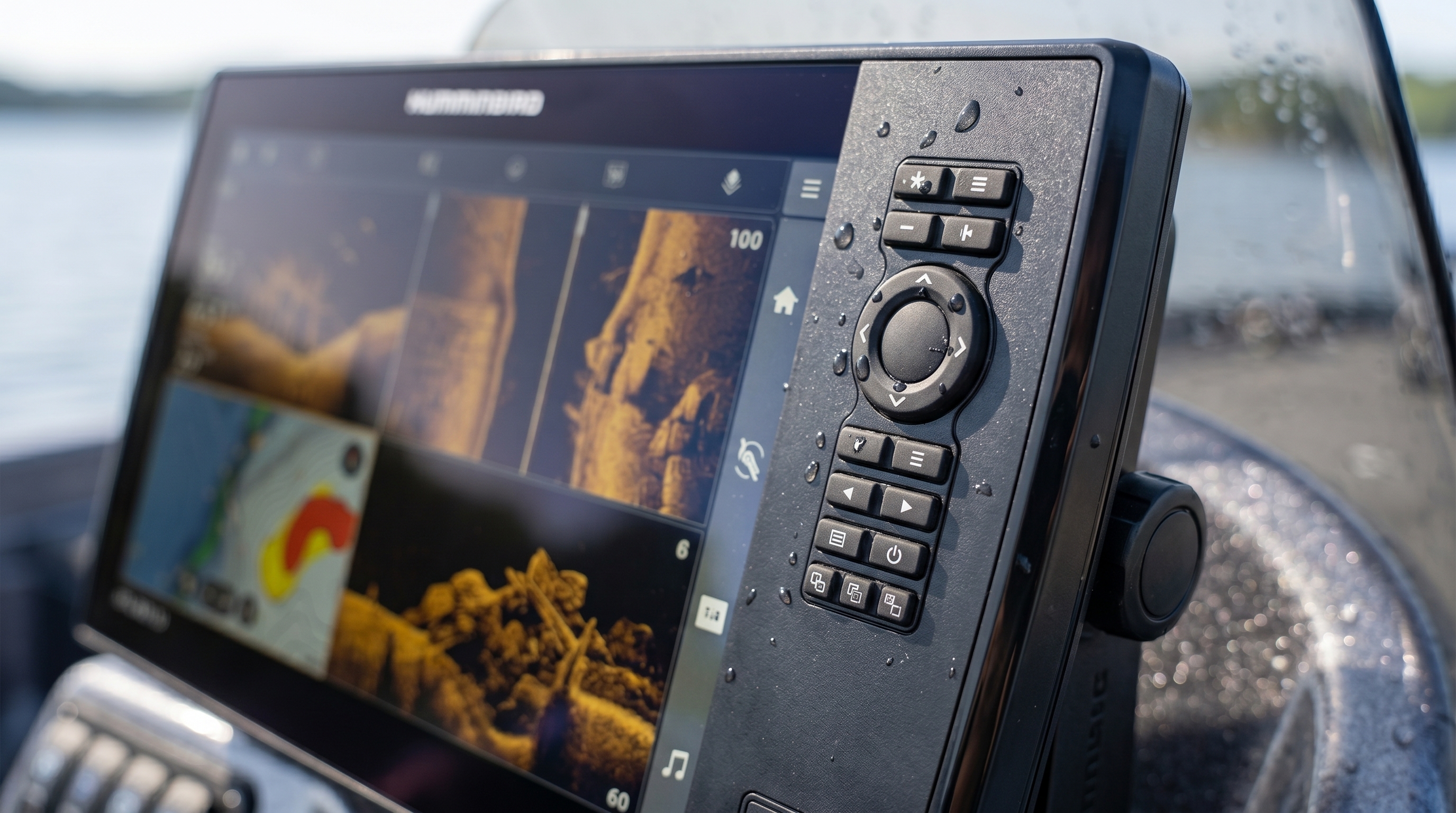

Macro view of the high-resolution anti-glare screen and rugged outer casing, built to withstand volatile weather and high-speed impacts.

The screen itself is a 1280H x 720V Full-HD display designed specifically for harsh marine environments. The anti-glare coating feels heavily baked in, not just sprayed on as an afterthought. We tested the 10-inch model, which strikes a highly practical balance between screen real estate and console footprint.

Humminbird retained the Cross Touch interface, and this is a massive win. You get the speed of a touchscreen alongside the physical keypad. When you are flying across the lake in heavy chop, trying to accurately tap a flat screen is an exercise in futility. The tactile, rubberized buttons provide a satisfying, clicky resistance that works flawlessly even with cold, wet hands.

The mounting bracket is thick-gauge, powder-coated aluminum. The gimbal knobs lock aggressively into place, eliminating the slow downward screen creep that plagues cheaper units during long runs in rough water. The connection ports on the rear feature deep, heavily gasketed collars that ensure your Ethernet and transducer cables remain bone-dry and firmly seated.

What the Specs Actually Mean on the Water

A spec sheet reading "Quad-Core Processor" might sound like marketing jargon, but it translates directly to your efficiency on the water. In previous generations, quickly zooming out on a highly detailed contour map would result in a frustrating three-second freeze. With the XPLORE, that rendering lag is gone.

The 200-foot range of the MEGA Side Imaging+ means you can scan a 400-foot swath of the lake bottom in a single pass. Cruising at 4 mph, the 20% increase in detail over standard MEGA Imaging allows you to distinguish between a submerged laydown and a tight ball of baitfish without having to idle back over the target.

Performance — Field Test Results

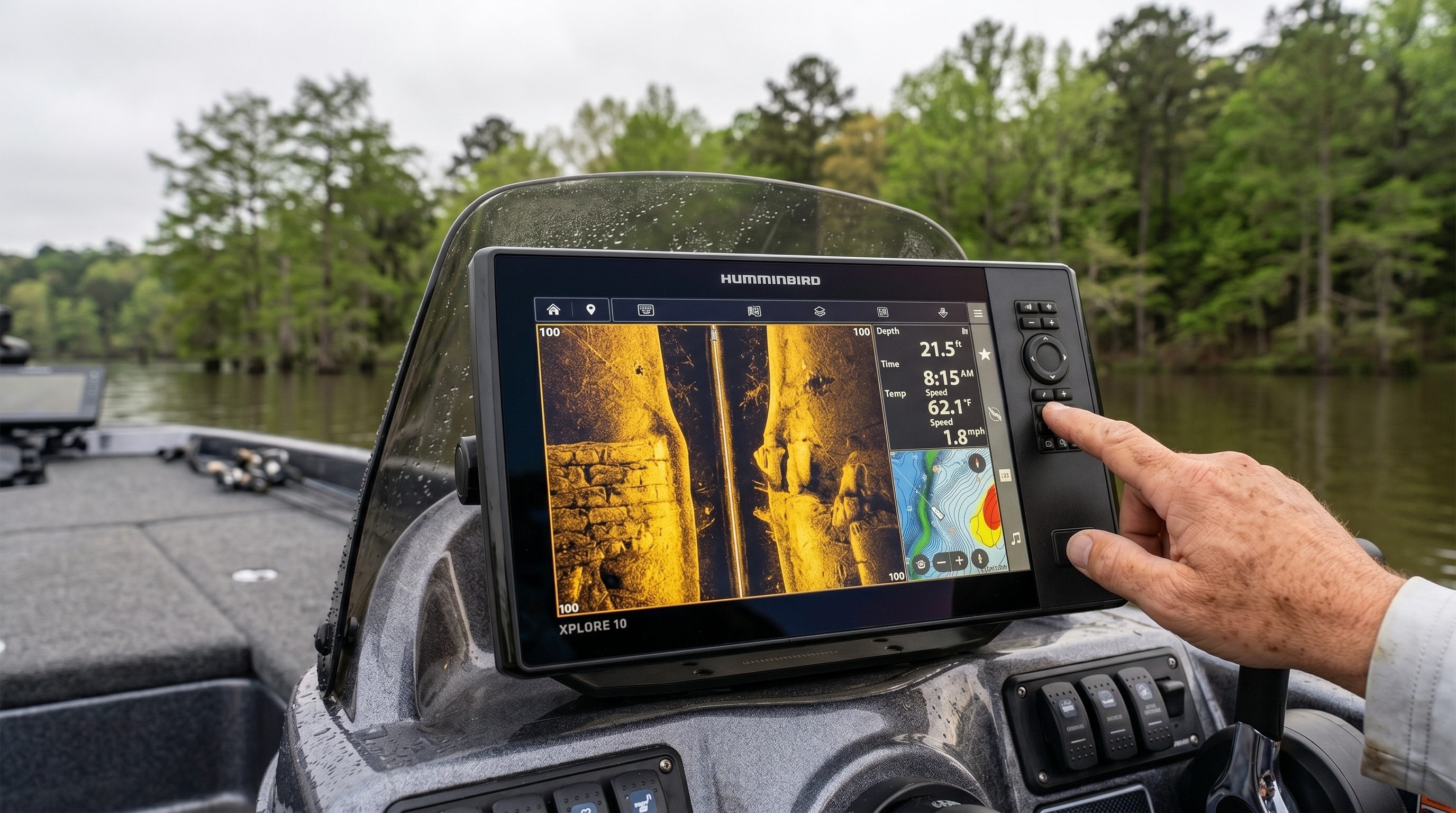

Field testing the real-time target separation and mapping refresh speed on a Southern reservoir.

We spent 14 days in April 2026 dissecting a flooded Southern reservoir. The water was heavily stained from spring runoff, with visibility hovering around four feet. We targeted prespawn largemouth staging on secondary points and deep brush piles. I set the side imaging to a 100-foot range on both sides. At 85 feet to the port side, the screen painted three distinct brush piles sitting in 18 feet of water. The return was so crisp that I could clearly count individual structural branches.

More importantly, the target separation allowed me to see the suspended white streaks of staging bass tucked tightly against the wood. We dropped a waypoint, circled back with the Minn Kota trolling motor, and pulled five keeper largemouths on a dropshot rig in under an hour. That specific isolated cover was entirely invisible on our older backup sonar unit running standard side scan.

Scanning Submerged Timber with MEGA Side Imaging+

The 15 optimized color palettes are a highly practical addition. In the stained water, switching the side imaging to palette 2 (amber/brown) drastically increased the contrast of hard returns against the soft mud bottom. The shadows cast by the submerged timber were incredibly sharp, indicating not just the presence of cover, but its vertical height off the bottom.

We also heavily utilized the MEGA Down Imaging+. When sitting vertically over deep rock piles, the dual spectrum CHIRP sonar separated tightly packed bait balls from actively feeding gamefish with surgical precision. The traditional 2D sonar arches were thick, defined, and completely devoid of the surface clutter that often plagues spring fishing.

Navigating with LakeMaster and SmartStrike

The unit comes preloaded with LakeMaster and CoastMaster charts. The 1-foot depth contours updated seamlessly as we navigated on pad. The standout feature here is the depth highlight tool. We highlighted the 10-to-15 foot depth range in bright green, making the staging zones visually pop across the entire lake map. This completely removed the guesswork from our daily navigation route.

Edge Cases & Stress Testing

No piece of marine electronics is flawless, and the Humminbird XPLORE has a distinct Achilles' heel: extreme power consumption. The bright HD screen and quad-core processor demand a massive amount of juice.

During a grueling 12-hour tournament day, running the unit at 100% brightness alongside live wells and other accessories pulled our traditional deep-cycle lead-acid battery down to critical levels by 2:00 PM. We experienced a low-voltage warning that momentarily dimmed the screen. If you are running multiple XPLORE units, a dedicated 12V lithium electronics battery is not just recommended; it is practically a strict requirement.

Furthermore, while the display cuts through standard daylight beautifully, direct overhead midday sun at very specific angles created a noticeable glare unless we had the polarized sunglasses filter toggled perfectly in the settings menu.

Head-to-Head — How It Compares

To provide context, we stacked the Humminbird XPLORE against two of its most prominent competitors in the highly contested marine electronics market.

The Humminbird XPLORE dominates the side imaging category. The sheer lateral range and clarity of the MEGA SI+ simply outperforms Garmin's SideVü and Lowrance's ActiveImaging HD at distances past 100 feet. The quad-core processor also makes map rendering noticeably faster than the competitors.

However, Garmin still holds a slight edge if your primary focus is strictly forward-facing sonar. While the XPLORE pairs beautifully with the new MEGA Live 2, Garmin's LiveScope interface remains marginally more intuitive for anglers who do nothing but stare at live returns all day. That said, as a complete, well-rounded ecosystem, Humminbird’s integration with Minn Kota is unmatched.

Ease of Use — Setup, Ergonomics & Learning Curve

Humminbird completely overhauled the user interface for the XPLORE series, and the streamlining is obvious from the first boot-up. The archaic, deeply nested menus of the older Helix models are gone. Everything you need is accessible via a customizable quick-access sidebar.

Cloud-Based Waypoint Management

The new waypoint management system is brilliant. Using the One-Boat Network App on your smartphone, you can sync up to 10,000 waypoints directly to the cloud. We spent an evening in the hotel room categorizing brush piles with specific green tree icons and rock piles with grey diamond icons. The next morning, the fish finder automatically synced via Bluetooth, populating the map exactly as we had prepped it.

Integration with the One-Boat Network

Pairing the XPLORE with a Minn Kota trolling motor takes roughly three minutes. Once networked, you control the boat directly from the sonar screen. Tapping a waypoint on the HD display and hitting "Go To" prompts the trolling motor to autonomously navigate to the spot and engage Spot-Lock upon arrival. The ergonomics of controlling shallow water anchors and the trolling motor without ever lifting your hands from the sonar console drastically increases your fishing efficiency.

Pros and Cons

Who Is This For? (and Who Should Look Elsewhere)
