Garmin Striker 4 Review (2026): Is This Still the Best Value Sonar for Kayak Anglers?

CHIRP Sonar: The Science of Separation

The high-frequency CHIRP sonar provides exceptional target separation on the 3.5-inch screen.

What is CHIRP?

Unlike traditional sonars that send one single frequency at a time, CHIRP (Compressed High-Intensity Radiated Pulse) sends a continuous sweep of frequencies. This provides a much higher level of data for the processor to work with.

Real-World Impact

When I was testing the Striker 4 in 20 feet of water over a brush pile, the difference was clear. Traditional sonars might show a "blob" of yellow on the screen. The Striker 4 clearly separated individual fish from the branches of the submerged tree. For vertical jigging, you can actually see your lure dropping and watch the fish rise to meet it in real-time. That level of precision is addictive.

Field Test: Real World Scenarios

Scenario 1: Marking Deep Water Brush Piles

During a scouting session on Lake Lanier, I was hunting for submerged brush in 25-30 feet of water. Using the CHIRP sonar, I was able to identify the "fuzz" on the screen as actual branches rather than just bottom noise. Once identified, I hit the 'Mark' button. Three hours later, after the wind had pushed me off-site, I used the Waypoint Map to navigate exactly back to the spot. The 0.1mph speed reading allowed me to keep my boat perfectly positioned while I dropped a drop-shot rig right into the strike zone.

Scenario 2: The Ice Fishing 'Flasher' Test

Many anglers don't realize that the Striker 4 is one of the best budget ice-fishing units. In Flasher mode, the latency is almost zero. I spent a weekend on the ice tracking my 1/16oz tungsten jig. I could see the perch move from the bottom to my lure, and I could time my hooksets based on the movement in the dial. It performed as well as dedicated ice flashers that cost three times as much.

GPS and Waypoint Marking: Your Digital Breadcrumbs

One of the most common misconceptions about the Striker 4 is its GPS. To be clear: This unit does not have maps. You will see a white screen with your current position and any points you've marked.

Why It Still Works

Even without maps, the high-sensitivity GPS is invaluable. When I find a specific rock pile or a transition from sand to mud where fish are holding, I hit the 'Mark' button. Now, that spot is saved forever. You can also mark boat ramps, docks, and hazards. The "Waypoint Map" screen allows you to easily navigate back to these spots with an arrow and distance indicator. It’s simple, but it works flawlessly.

Technical Specifications

Head-to-Head: Battle of the Budget Sonars

Note: If you have a slightly larger budget and need live bottom contour mapping alongside expandable SD card storage, be sure to read our full Humminbird Helix 5 CHIRP GPS G3 review for a significant step up in tech.

Design & Portability: Built for the Kayak

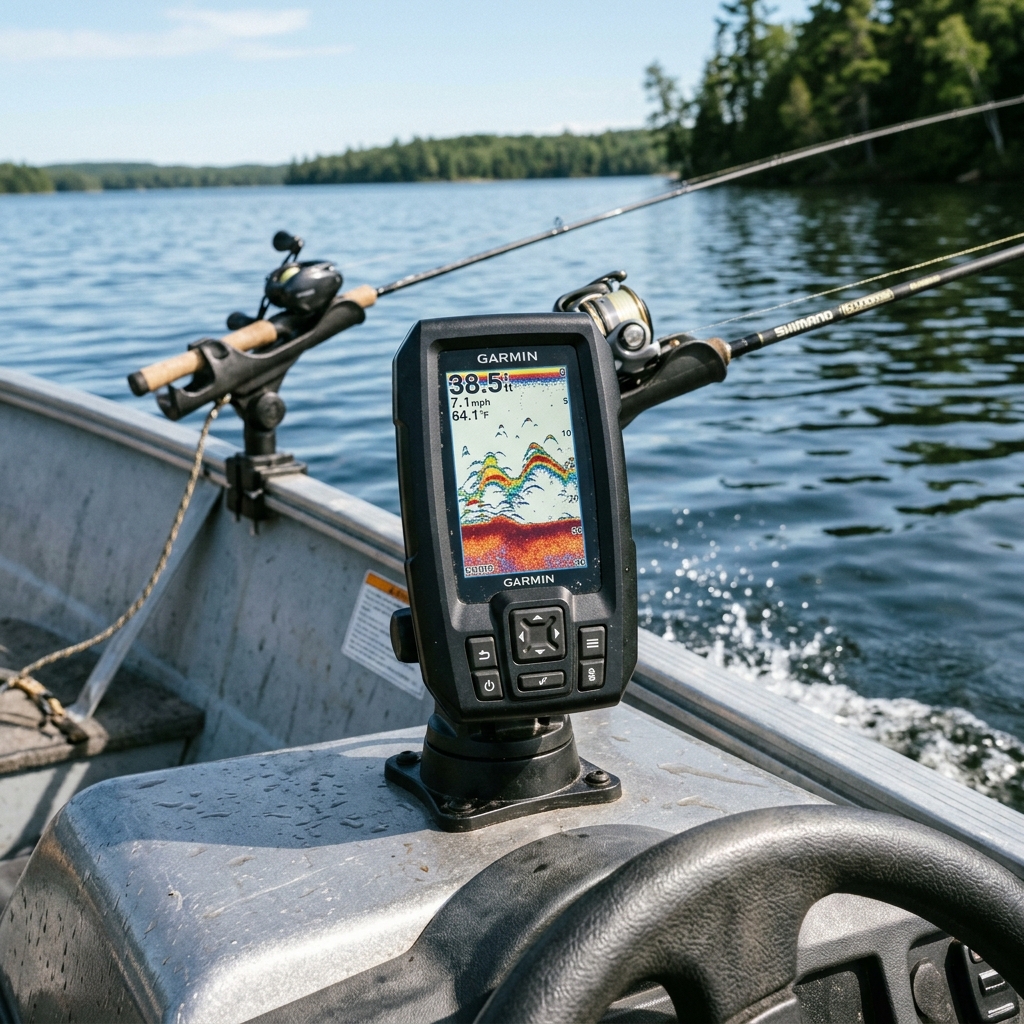

The compact footprint makes it the ideal choice for small boat and kayak setups.

The 3.5-Inch Display

The screen is vertical, which is actually great for deep-water sonar as it gives you more vertical history. It is sunlight-readable, though in direct high-noon sun, you might need to tilt it slightly to avoid glare. The interface is operated by buttons—no touchscreen here, which is a blessing when your hands are covered in fish slime or you're wearing gloves in the winter.

Efficient Power Draw

The unit is incredibly efficient. I can run it for two full days on a small 7Ah lead-acid battery or a tiny lithium power pack. For kayak anglers, this means you don't need a massive, heavy battery taking up valuable deck space. It also comes with a tilt/swivel mount that is easy to install on any flat surface or kayak gear track. For exploring more equipment options and mounting accessories, visit our curated fishing gear marketplace.

Ease of Use & Interface

Garmin's interface is arguably the most intuitive in the electronics game. With a dedicated "Home" button and a simple directional pad, you can toggle between traditional sonar, waypoint maps, and split-screen views in seconds.

The A-Scope feature is another hidden gem. It provides a real-time view of fish passing through the transducer beam, which is far more accurate than the "Fish Symbols" (which I recommend turning off immediately for a more professional experience).

Frequency Tuning: 77kHz vs 200kHz Target Separation

Understanding how to manipulate the dual frequencies of the Garmin Striker 4 is key to unlocking its full target separation potential. The included transducer operates on two distinct cones, each offering a specific trade-off between coverage area and image detail. Knowing when to switch between these frequencies can turn a frustrating scouting trip into a highly successful harvest.

The 77kHz Broad Search Cone

The 77kHz frequency projects a wide, 45-degree cone into the water column. This wide footprint is ideal for searching large flats or tracking deep-water schooling baitfish in depths over 40 feet. Because the cone cover a larger area of the bottom, it is perfect for marking broad structure like ledges, rock piles, or massive weed lines. However, the trade-off is reduced target separation. Individual fish within a school will often appear as a single, large mass rather than separate signals.

The 200kHz Precision Cone

For pinpointing individual fish and tracking small lures, the 200kHz frequency is the superior choice. This frequency uses a narrow, 15-degree cone that focuses the sonar energy directly beneath the transducer. This tight focus delivers class-leading target separation, allowing you to easily distinguish a single game fish suspended just inches above a brush pile. For vertical jigging or ice fishing, the 200kHz cone is essential, as it lets you track your jig's movement and observe the fish's reaction with near-zero signal latency.

Transducer Mounting Configurations & Speed Performance

The performance of any sonar unit is heavily dependent on the placement and alignment of the transducer. The Striker 4 package includes a versatile mounting kit, but different watercraft require specific installation methods to avoid cavitation and signal loss at speed.

Transom Mounting vs Kayak Scupper Installation

For small aluminum utility boats, the classic transom mount is the standard configuration. The key is positioning the transducer slightly below the hull line, away from the turbulent water generated by the outboard propeller. If mounted too close to the prop, air bubbles will cause signal cavitation, resulting in a cluttered screen at speeds over 5 mph.

For fishing kayaks, a scupper hole mount or inside-the-hull transducer installation is preferred. Running the transducer inside the hull using marine goop keeps the unit protected from rocks and logs during shallow-water river runs. However, shooting the sonar signal through the kayak's plastic hull does reduce maximum depth capability and water temperature accuracy by approximately 5 to 10%.

AutoChart Quickdraw Custom Mapping Dynamics

Although the Garmin Striker 4 does not feature pre-loaded mapping coordinates, it does support basic waypoint navigation and track logging. By utilizing the unit's high-sensitivity GPS, you can create custom path records of small farm ponds or remote lakes that have never been mapped by major cartography companies.

As you troll slowly across a body of water, the unit records your depth history relative to your GPS coordinates. Over multiple passes, you can mark specific contours, transition lines, and deep holes. This visual pathing map is incredibly useful for replicating successful trolling runs or identifying hidden structure that is invisible from the surface. It is a powerful tool for anglers seeking to build their own local fishing database.

Pros and Cons
