Humminbird Helix 5 CHIRP GPS G3 Review: Is This 5-Inch Powerhouse Worth the Deck Space?

Build Quality & Aesthetics: Punching Above Its Weight

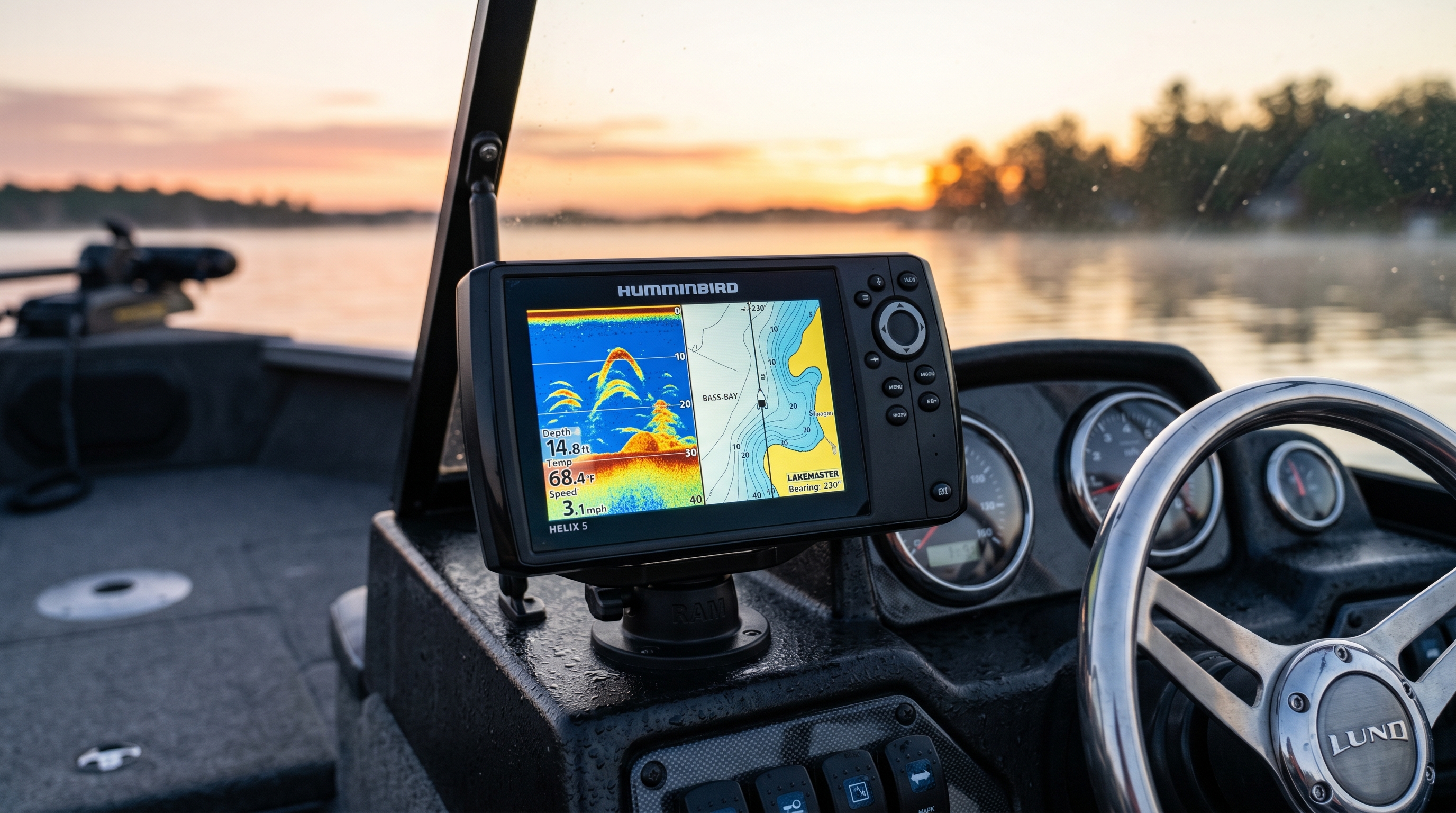

The Humminbird Helix 5 G3 features a ruggedized IPX7 casing and tactile button layout, offering reliable operation in harsh marine conditions.

When you first unbox the Helix 5 G3, the initial impression is one of rugged pragmatism. It doesn't have the sleek, edge-to-edge glass of a high-end smartphone, but out on the water, that’s actually a distinct advantage.

Display Visibility and Glare Reduction

The unit features a 5-inch widescreen (16:9) color TFT display with an 800 x 480-pixel resolution. On paper, 800x480 might sound modest in 2026, but squeezed into a 5-inch diagonal, the pixel density is excellent.

During my daytime testing, the glare reduction display performed admirably. Even with the sun beating down over my shoulder, the screen remained highly visible. More importantly, when viewing the screen through polarized sunglasses—a notoriously frustrating experience with cheaper displays that tend to black out—the Helix 5 remained legible from multiple viewing angles.

Ruggedness and Mounting

The unit feels incredibly solid. It carries a strict IPX7 waterproof rating, meaning it can survive being submerged in a meter of water for 30 minutes. I didn’t intentionally dunk it, but it took a solid wave over the bow and a heavy afternoon downpour without a single hiccup.

The included gimbal mount is robust and provides enough friction to keep the unit perfectly angled even when pounding through heavy boat wake. If you are doing a kayak fish finder setup, the physical buttons and chunky bezels actually provide excellent gripping points for adjusting the unit on the fly.

Technical Performance: Where the Magic Happens

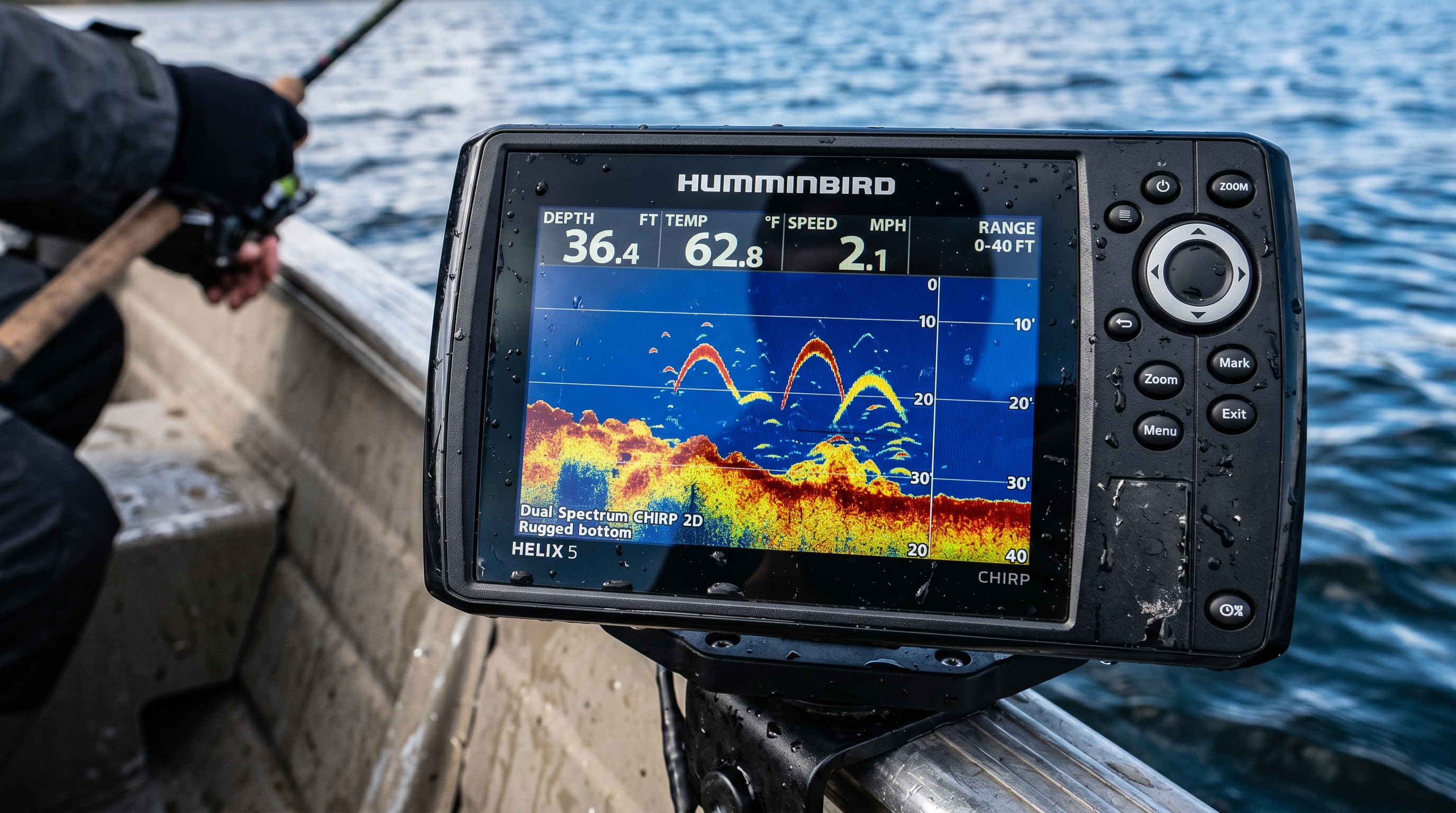

The Dual Spectrum CHIRP sonar sweeps across a wide range of frequencies, delivering clear target separation and thick, easily recognizable fish arches.

A fish finder lives and dies by its sonar capabilities, and this is where the Helix 5 G3 separates itself from budget entry-level finders. Note that this specific model (411660-1) focuses purely on standard 2D CHIRP and GPS—there is no Down Imaging (DI) or Side Imaging (SI) here. But what it does, it does brilliantly.

Dual Spectrum CHIRP Sonar Mastery

Humminbird’s dual spectrum CHIRP sonar is powered by their proprietary Low Q CHIRP transducer. Unlike traditional sonar that pings a single frequency, CHIRP sweeps across a range of frequencies to provide a much denser, clearer picture.

The Helix 5 G3 offers two modes:

• Wide Mode: Perfect for shallow water fishing and maximizing your coverage area. I found this incredibly useful when scanning for bait balls suspended in the water column.
• Narrow Mode: This is where the target separation shines. When switched to narrow, the sonar pulses lock onto bottom details. I was able to clearly distinguish a walleye sitting mere inches off a rocky bottom—a scenario where older sonars would just show a solid, ambiguous lump.

The resulting sonar arches are thick, vibrant, and incredibly easy to interpret. You aren't guessing if you're looking at a fish or a clump of weeds; the high-definition returns make it obvious.

GPS and Navigation Accuracy

The internal GPS antenna is exceptionally fast. Upon booting up, it acquired a satellite lock in under 30 seconds, even under moderate cloud cover. The waypoint navigation is precise; returning to a marked brush pile put me directly on top of the structure every single time.

The unit comes pre-loaded with the Humminbird Basemap, which covers over 10,000 U.S. lakes and coastal areas. While it’s a solid starting point that shows depth contours, day markers, and hazards, serious anglers will want to take advantage of the micro SD slot to run premium maps like LakeMaster or Navionics.

The Crown Jewel: AutoChart Live

This is the feature that legitimately blew my mind on a 5-inch unit. AutoChart Live allows you to create your own rich, highly detailed bottom contour mapping in real-time as you drive or paddle your boat.

If you fish on smaller, unmapped lakes, this is invaluable. The unit gives you up to 8 hours of internal recording time. I spent an afternoon mapping a complex drop-off, watching the depth lines draw themselves on the screen. Important note: Once you hit that 8-hour limit, you must purchase a Humminbird Zero Lines SD card to continue saving your maps. Factoring that into your long-term setup is crucial.

Ease of Use: Interface, Installation & Settings

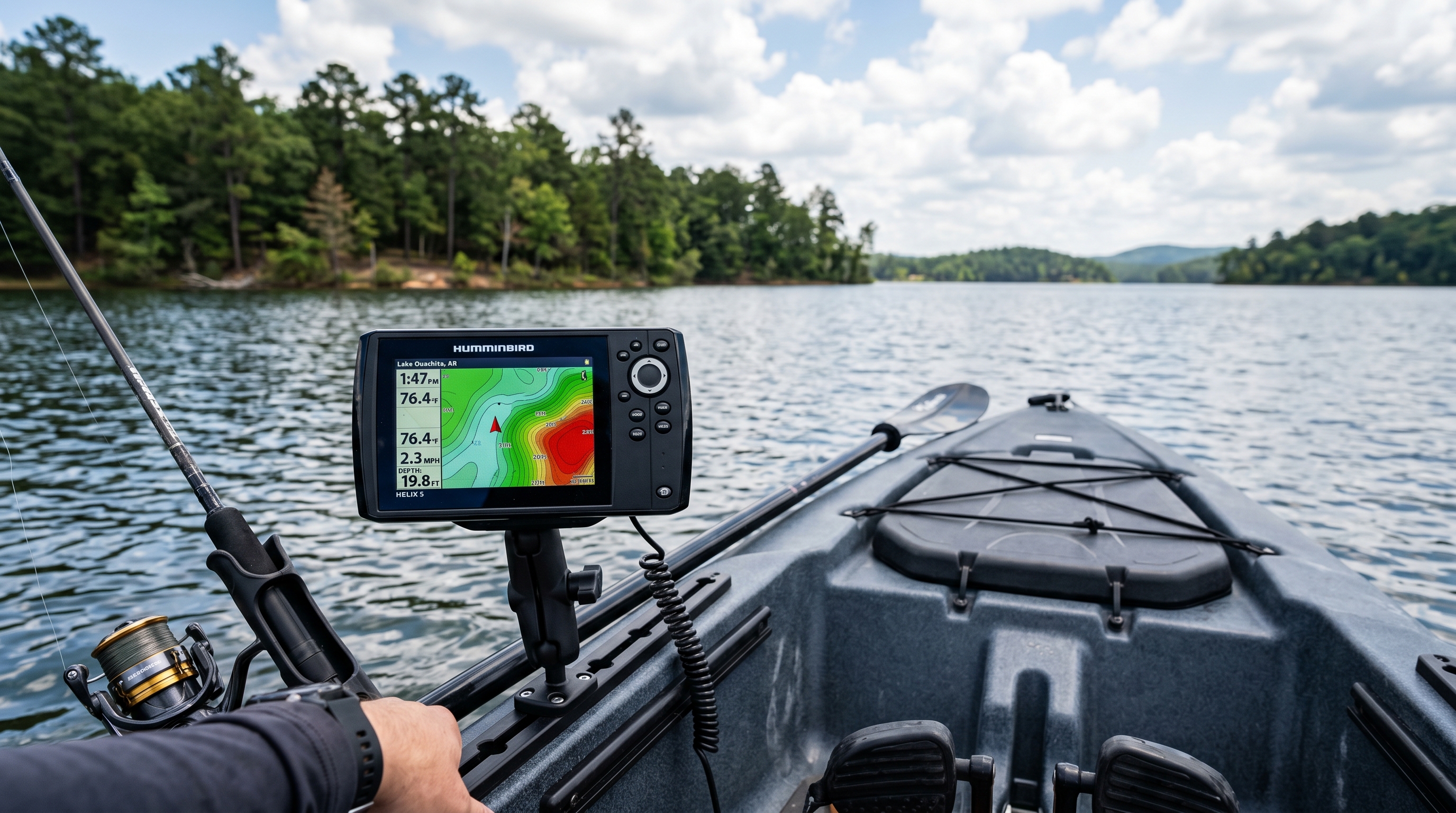

The compact footprint and low power draw make the Helix 5 G3 particularly suitable for kayak and small boat console mounting.

Having incredible technology means nothing if you need a software engineering degree to operate it. Fortunately, Humminbird has refined their operating system over the years.

Menu Navigation and Keypad

The Helix 5 G3 relies entirely on a keypad interface—there is no touchscreen. While touchscreens are great in the showroom, out on the water with hands covered in fish slime, rain, or bait, physical buttons are vastly superior.

The menu system is intuitive. A simple press of the 'Menu' key brings up quick adjustments (like sonar sensitivity), while a double-press dives into the deeper system settings. The directional pad is highly responsive, though dropping a waypoint name via a digital keyboard using a D-pad can feel a bit like texting on an old flip-phone. It takes a few extra seconds, but you get used to it quickly.

Transducer Installation

The included XNT 9 HW T transducer is designed for a standard transom mount. The installation process is straightforward, requiring basic tools and some marine sealant. Humminbird provides a kick-up bracket design, which saved my transducer when I accidentally nudged a submerged stump—the bracket released, preventing the transducer from snapping off.

For kayak users, you will likely need to purchase a separate scupper hole mount or a side-arm track mount, as the transom hardware is bulky.

Head-to-Head: Humminbird Helix 5 G3 vs. The Competition

To give you a clear perspective, here is how the Helix 5 G3 compares to its two closest rivals in the 5-inch category.

The Takeaway: The Helix 5 dominates the Garmin by offering an SD card slot for premium maps and software updates. While the Lowrance offers DownScan alongside standard CHIRP, the Humminbird’s Dual Spectrum 2D sonar provides superior traditional fish arches and target separation (detailed further in our sonar reading guide).

Pros & Cons Breakdown

Honesty is paramount when investing in marine electronics. Here is the unvarnished truth about where the Helix 5 G3 succeeds and where it stumbles.

Who Is This Unit Actually For?

The Ideal User

Kayak and Canoe Anglers: It offers a low power draw (meaning a small lithium battery will run it for days) and a compact footprint, making it the premier choice for small vessels (highly recommended in our kayak fishing electronics setup guide).

Small Aluminum Boat Owners: Perfect for johnboats where dashboard real estate is non-existent. It also serves as an absolute beast for **Ice Fishermen** when paired with a portable shuttle, thanks to its zero-latency flasher mode. Finally, it fits the needs of **Budget-Conscious Mappers** who fish uncharted, small waters and need the power of AutoChart Live without spending a fortune.

Who Should Avoid It

Console Owners of Large Bass Boats: A 5-inch screen is simply too small to read comfortably from a standing position on a large casting deck. Also, **Structure Anglers** who rely heavily on photorealistic images of sunken trees and brush to catch fish should skip this 2D-only model and step up to a unit with Down Imaging or Side Imaging (such as the larger Humminbird Helix 7 CHIRP SI GPS G4 which offers dedicated Side Imaging).
