Abu Garcia Max X Review: The New Baseline for Entry-Level Baitcasters

First Impressions & Build Quality

A macro studio view showing the Abu Garcia Max X spool assembly and spool tension adjustments.

Pulling the Abu Garcia Max X from the box, the immediate realization is that Abu didn't reinvent the wheel—they refined it. As the direct successor to the widely popular Black Max, the Max X introduces a modern, aggressive aesthetic. The matte grey and black finish replaces the older glossy red accents. This gives it a stealthier, more premium look on the deck of a boat.

When you palm the reel, the one-piece graphite frame and graphite sideplates keep the weight down to a manageable 7.4 ounces. Graphite is the industry standard for budget reels. It resists corrosion perfectly, but it lacks the absolute rigidity of an aluminum frame. Squeezing the reel tightly reveals a very slight flex. This is a non-issue for lighter applications, but it matters when we discuss heavy cover later.

The machined aluminum spool is a welcome sight. It spins freely out of the box, though it feels slightly heavier than spools found in the $100+ tier. Heavier spools require more start-up inertia. This means casting ultra-light lures will require more effort.

The handle features large PVC knobs. They are generously sized and comfortable in dry conditions. However, the PVC material lacks the tactile grip of high-density EVA foam or the premium feel of Winn grips. The compact bent handle pushes the cranking hand closer to the rod blank. This design effectively reduces wobble during a fast retrieve.

What the Specs Actually Mean on the Water

Spec sheets sell reels, but on-water physics dictate performance. The Max X features a 6.4:1 gear ratio. This is the quintessential middle-ground speed. It pulls in exactly 25 inches of line per handle turn (IPT).

On the water, 25 IPT means you can comfortably slow-roll a 3/8 oz spinnerbait just above submerged grass. Conversely, you can burn a squarebill crankbait fast enough to trigger a reaction strike without exhausting your wrist. It lacks the blistering speed needed for flipping and pitching where picking up slack instantly is critical.

The reel houses a 4+1 stainless steel bearing system. Four ball bearings and one roller bearing for the anti-reverse. It feels adequately smooth, but you will feel the gears working through the reel seat. The Power Disk drag system boasts a 15-pound max drag rating. Fifteen pounds is plenty of stopping power for standard largemouth bass applications, provided the drag curve is smooth.

Performance — Field Test Results

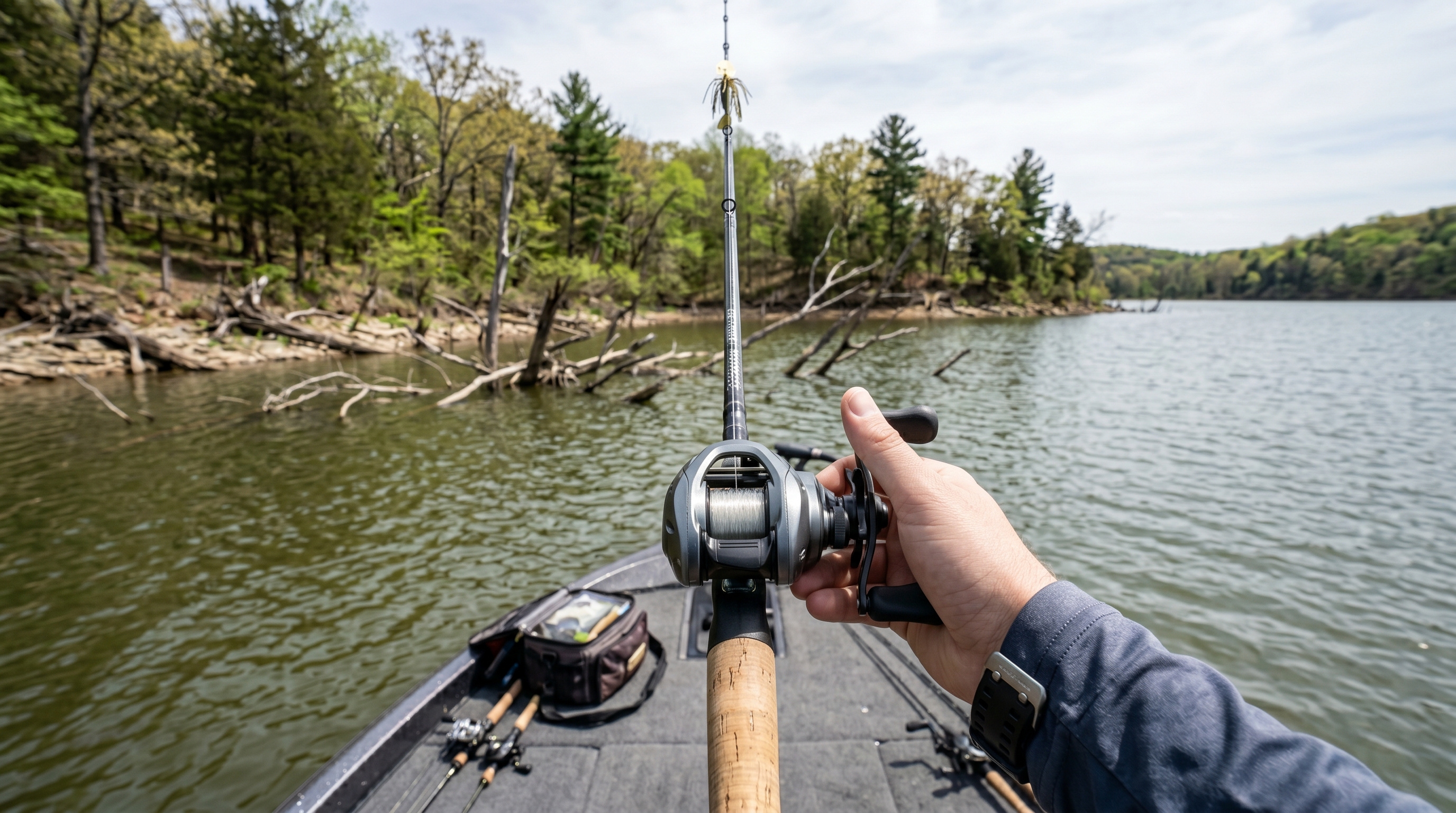

Field testing the Abu Garcia Max X on a pressured mid-western reservoir with moving baits.

Our field testing focused heavily on the pre-spawn and spawn transition during April. The water was hovering around 58 degrees, pushing bass into shallow, wood-cluttered bays. We spooled the Max X with 15 lb fluorocarbon and paired it with a 7'0" Medium-Heavy, fast-action casting rod.

The primary test lure was a 1/2 oz bladed jig. The reel handled the aerodynamics of this lure beautifully. The MagTrax brake system is entirely magnetic, utilizing a linear array of magnets acting on the aluminum spool. With the external dial set to 50%, casting into a stiff 12 mph headwind resulted in consistent, 35-yard casts with zero thumbing required until the lure hit the water.

The most defining moment of the test sessions occurred on day four. A solid 4.2 lb largemouth engulfed the bladed jig next to a sunken cedar tree. The fish immediately surged toward the submerged branches. I locked my thumb on the spool and leaned into the rod. The 15 lb Power Disk drag engaged smoothly. Crucially, there was no startup stutter—the sudden jerk that often causes line breakage on cheaper drag systems. The drag yielded a few feet of line smoothly before I turned the fish's head. We landed 11 bass that morning, and the drag performance remained consistent throughout the session. Sensitivity is adequate; the graphite frame transmits the heavy vibration of the bladed jig reasonably well.

Edge Cases & Stress Testing

Every budget reel has a ceiling. We found the Max X's limit when we swapped the spool to 50 lb braided line and tied on a 1 oz tungsten flipping weight.

Punching thick vegetation requires extracting fish violently from heavy cover. When I set the hook on a fish buried in matted water willow, the graphite frame exposed its weakness. Under maximum torque, with the drag locked down tight, the frame flexed noticeably. This frame torque causes the internal gears to momentarily lose their perfect alignment. You feel a distinct grinding sensation when cranking under extreme duress.

Additionally, the heavier aluminum spool struggles with finesse applications. We attempted to cast a 3/16 oz Ned rig on 10 lb fluorocarbon. The spool's start-up inertia caused immediate overruns unless we dialed the brakes up to 80%. Doing so choked the casting distance down to a mere 15 yards. Keep this reel paired with lures weighing 3/8 oz or more.

Head-to-Head: Abu Garcia Max X vs. The Competition

The Max X trades blows directly with the Daiwa CC80. The Abu offers slightly better ergonomics for anglers with larger hands due to the swept handle design, and the MagTrax system is arguably more forgiving for absolute beginners. However, the Daiwa CC80's carbon frame is marginally lighter.

If you step up a price tier to the Shimano SLX, the difference in rigidity is immediately apparent. The SLX's aluminum Hagane frame absolutely eliminates the torque flex we experienced with the Max X. Furthermore, Shimano's centrifugal SVS Infinity brakes offer superior ultimate casting distance. The trade-off is that centrifugal brakes require opening the sideplate to adjust, whereas the Max X relies on a simple external dial.

Ease of Use — Setup, Ergonomics & Learning Curve

If you have never thrown a baitcaster, this is your training wheel reel. Abu Garcia engineered the MagTrax system to be practically foolproof. For a full breakdown of how magnetic brakes control the spool compared to mechanical tension, see our Ultimate Baitcaster Tension & Brakes Guide.

Setup is incredibly straightforward. Tie on a 1/2 oz practice plug. Tighten the spool tension knob until the lure falls slowly when you press the thumb bar, stopping the spool instantly when the lure hits the ground. Next, turn the external magnetic brake dial to max. You can now cast without thumbing. As your thumb gets educated, you simply click the external dial down notch by notch.

Ergonomically, the reel sits low on the rod. The recessed reel foot allows it to palm comfortably, reducing wrist fatigue over an eight-hour session.

The primary ergonomic flaw lies in the adjustment knobs. The spool tension knob lacks micro-click detents. It turns smoothly, making precise, repeatable adjustments difficult. You have to rely entirely on feel rather than counting "clicks." Furthermore, once your hands are covered in fish slime or rain, the smooth PVC handle knobs become slippery. A textured grip would elevate the handling significantly.
